10.2. Home Screen

Once you have opened H90 Control and logged into your Eventide account, you will first see the home screen.

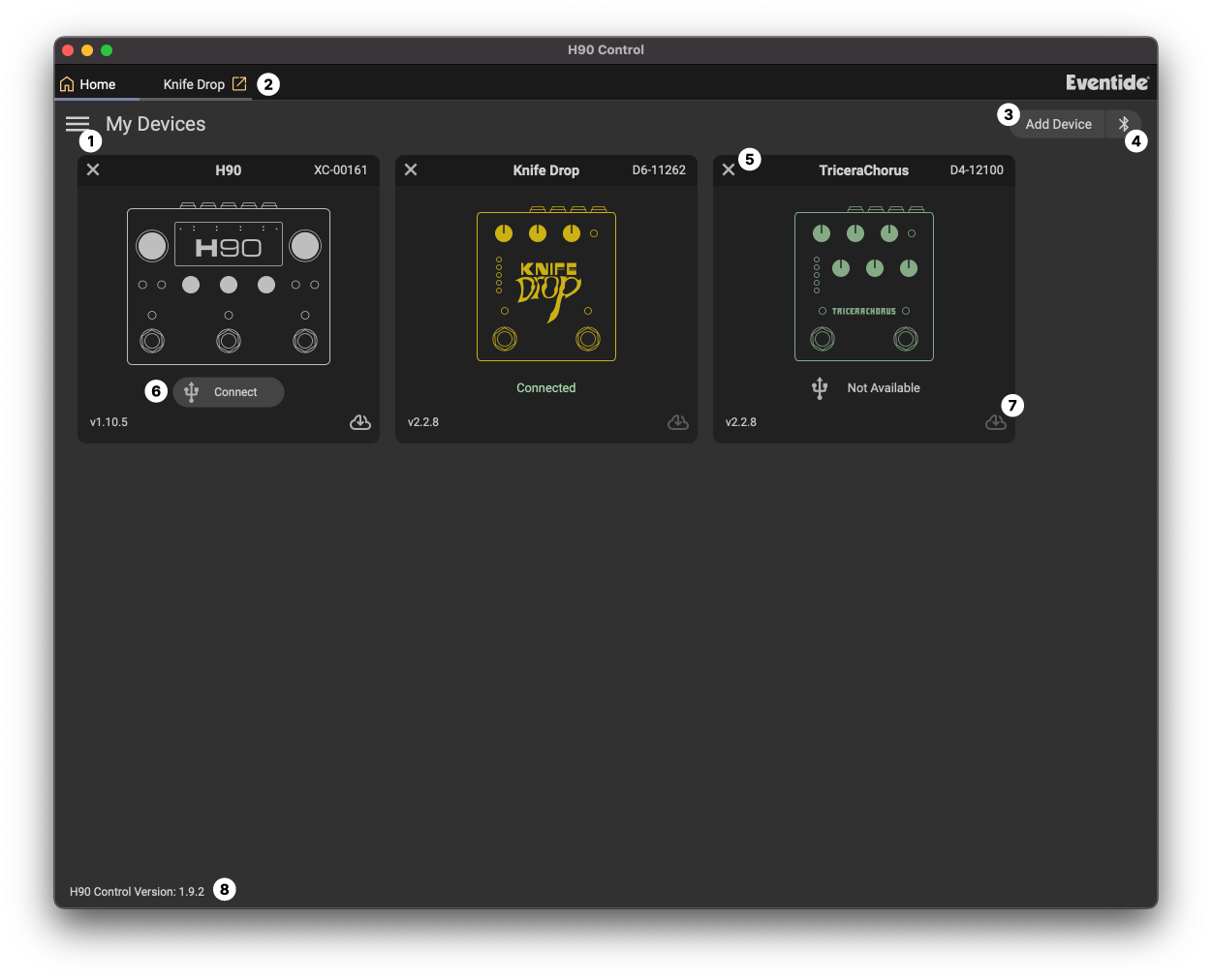

Fig. 10.1 The H90 Control home screen.

1. Click the burger icon for the following options:

   • H90 Control settings

   • Logout of your Eventide account

   • View this user guide

   • Open the H90 Control logfile for support purposes

   • Access Recovery Mode updates

   • Update your dot9 in Update Mode

   • View the About info for H90 Control

   • Zoom In ctrl/⌘ + =

   • Zoom Out ctrl/⌘ + -

   • Reset Zoom ctrl/⌘ + 0

2. Once you have connected to a device, it will show up in the top bar. You can connect to multiple devices at once and select each device this way. Click the arrow icon to detach the device’s tab and view it in a separate window.

3. Click the Add Device button to add your H90 or dot9 and be able to connect to it.

4. Click the Bluetooth icon to begin the Bluetooth pairing process for the H90.

5. Click the X icon to remove a device.

6. Your device information can be seen here. Click “connect” to start editing parameters on your H90 or dot9. You can also view the devices’s serial number, software version, and whether it uses a USB or Bluetooth connection.

7. Click the cloud icon when an update is available for your device.

8. View what version of H90 Control you are using here.

H90 Control connection tips:

• Your H90 will show up as two devices in H90 Control depending on the connection method: USB or Bluetooth. This will be indicated by the connection icon below the device’s image.

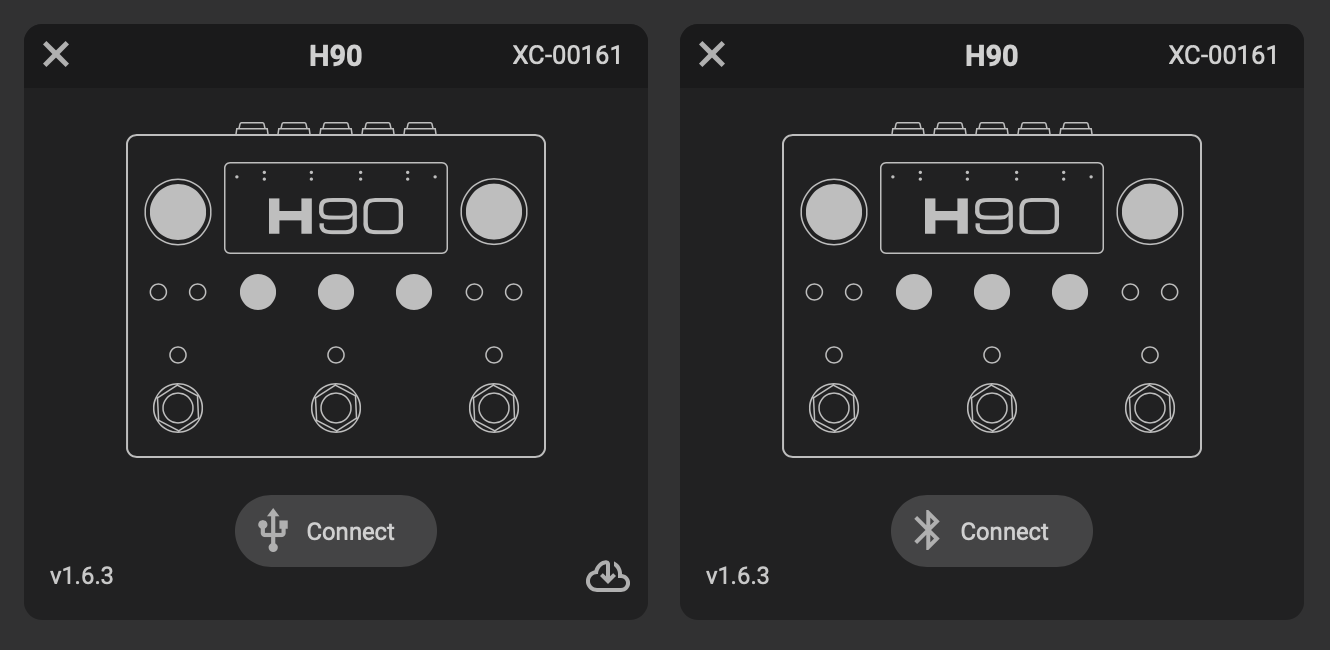

  Fig. 10.2 The USB Device can be seen on the left, while the Bluetooth device can be seen on the right.

• You cannot update your H90 via Bluetooth; you must use a USB connection to update. Click the cloud icon in the bottom right corner of the USB device to update.

• Do not connect your H90 to multiple devices running H90 Control via Bluetooth and USB simultaneously.
