3.6. Guitar and Vocals with MixingLink

Using the Eventide MixingLink, you can easily amplify a microphone signal, as well as another signal such as guitar, on two separate effects paths using the H90’s Dual Routing feature.

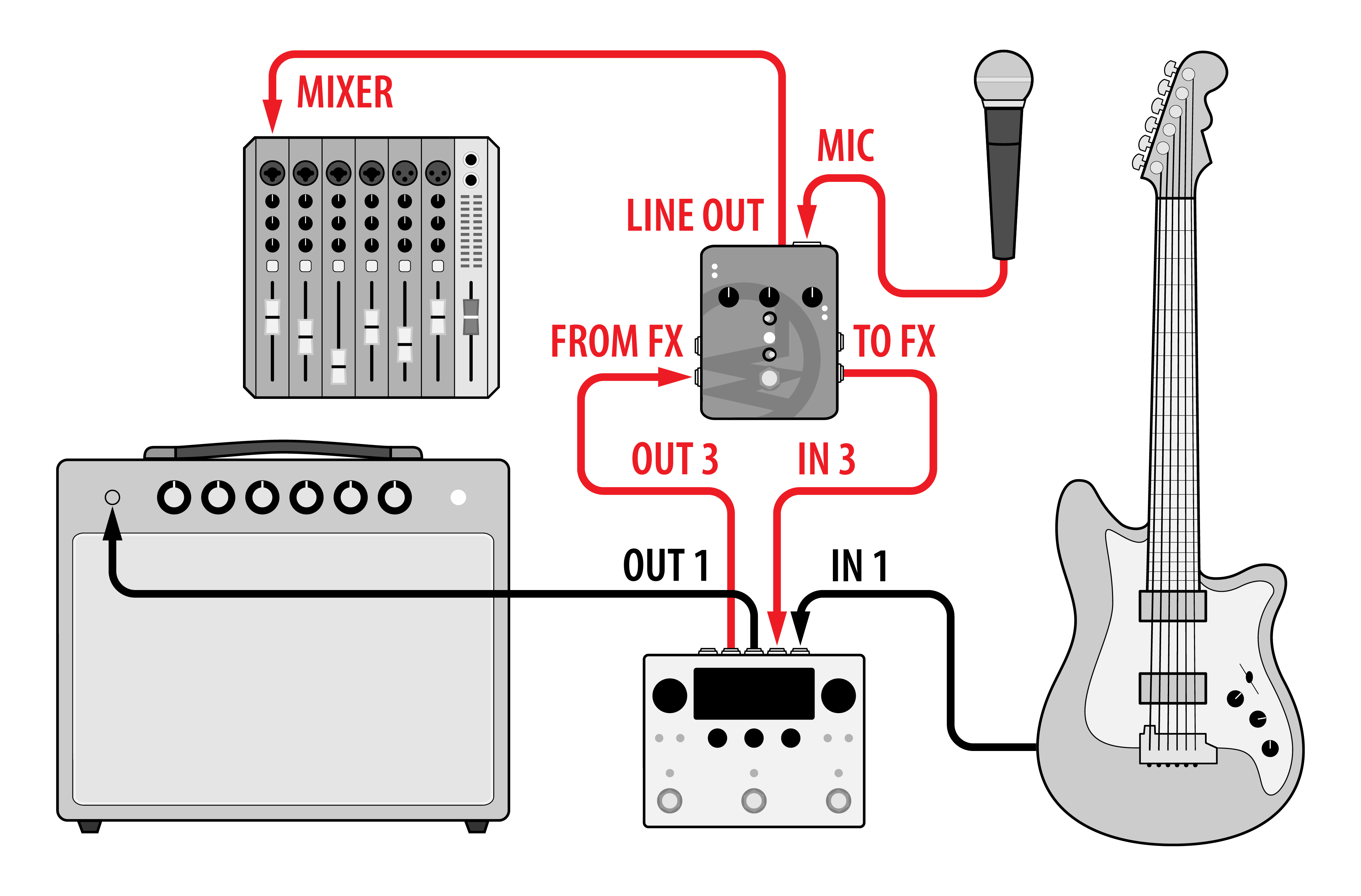

Fig. 3.10 Guitar and Vocals with MixingLink

  • Configure your H90’s Global Routing Configuration (Section 7.1) to use Dual Routing from the System Menu.

  • Connect your guitar to H90 Input 1.

  • Connect H90 Output 1 to your guitar amp.

  • Connect your microphone to the MixingLink mic input.

  • Connect MixingLink Line Output to a monitor input, such as a mixing console.

  • Connect MixingLink ‘To FX’ Output to H90 Input 3.

  • Connect H90 Output 3 to MixingLink ‘From FX’ Input.

  • Press the Routing Button and turn Quick Knob 1 to adjust the routing position to Pre/Post. This enables Preset A to be on Path 1 and Preset B to be on Path 2. Now we can use Preset A to process our guitar signal into the guitar amp, and Preset B to process the microphone signal into a different input source.

  • Check out Dual Routing (Section 6.2.2) for more info.
