7.2. I/O

In/Out Levels

Individually adjust inputs and outputs between instrument level and line level. An LED grid on the back of the H90 also indicates which jacks are set for line level signals.

Fig. 7.6 Input level display

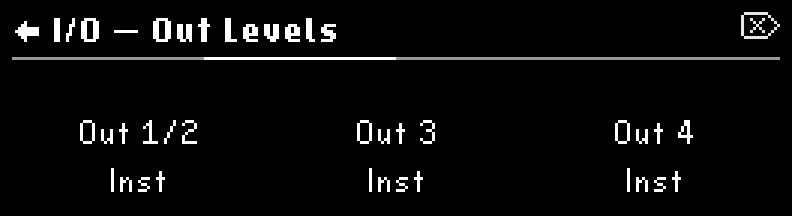

Fig. 7.7 Output level display

Exp/Ctl

Set pedal 1 and/or 2 to expression pedal or switch using Quick Knob 1 and 2.

Fig. 7.8 Exp & Aux setup display

Turn Quick Knob 3 to enable calibration.

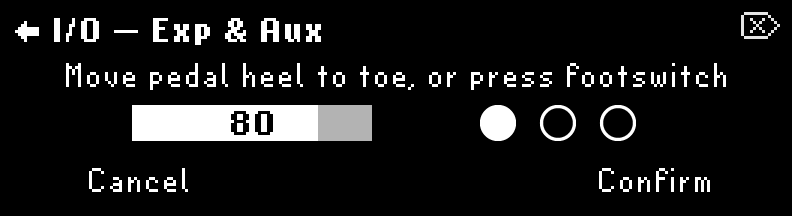

Fig. 7.9 This example shows one expression pedal and one aux switch being calibrated.

Jacks

Displays which inputs and outputs are connected.

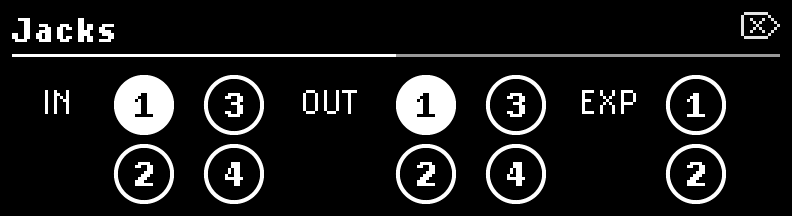

Fig. 7.10 This example shows that input 1 and output 1 are being used
