B. Signal Flow¶

B.1. Audio Signal Flow¶

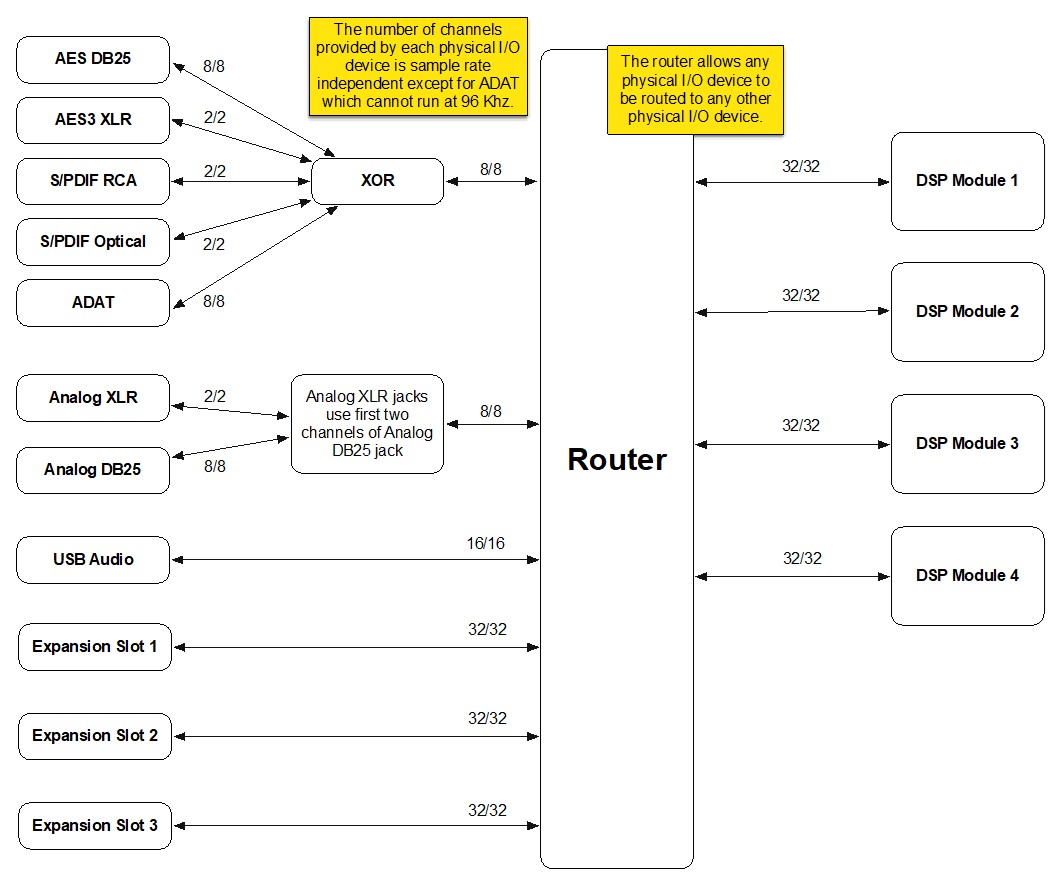

Audio Signal Flow

B.2. Control Signal Flow¶

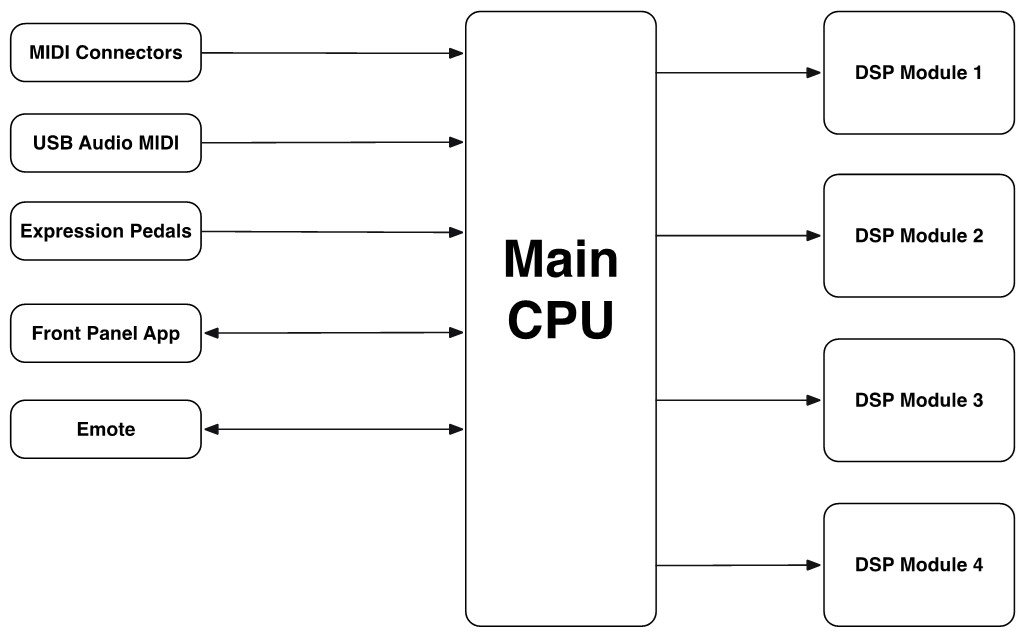

Control Signal Flow
