3.1. Simple Guitar Setup

It’s best to start simple.

Simple Guitar Setup

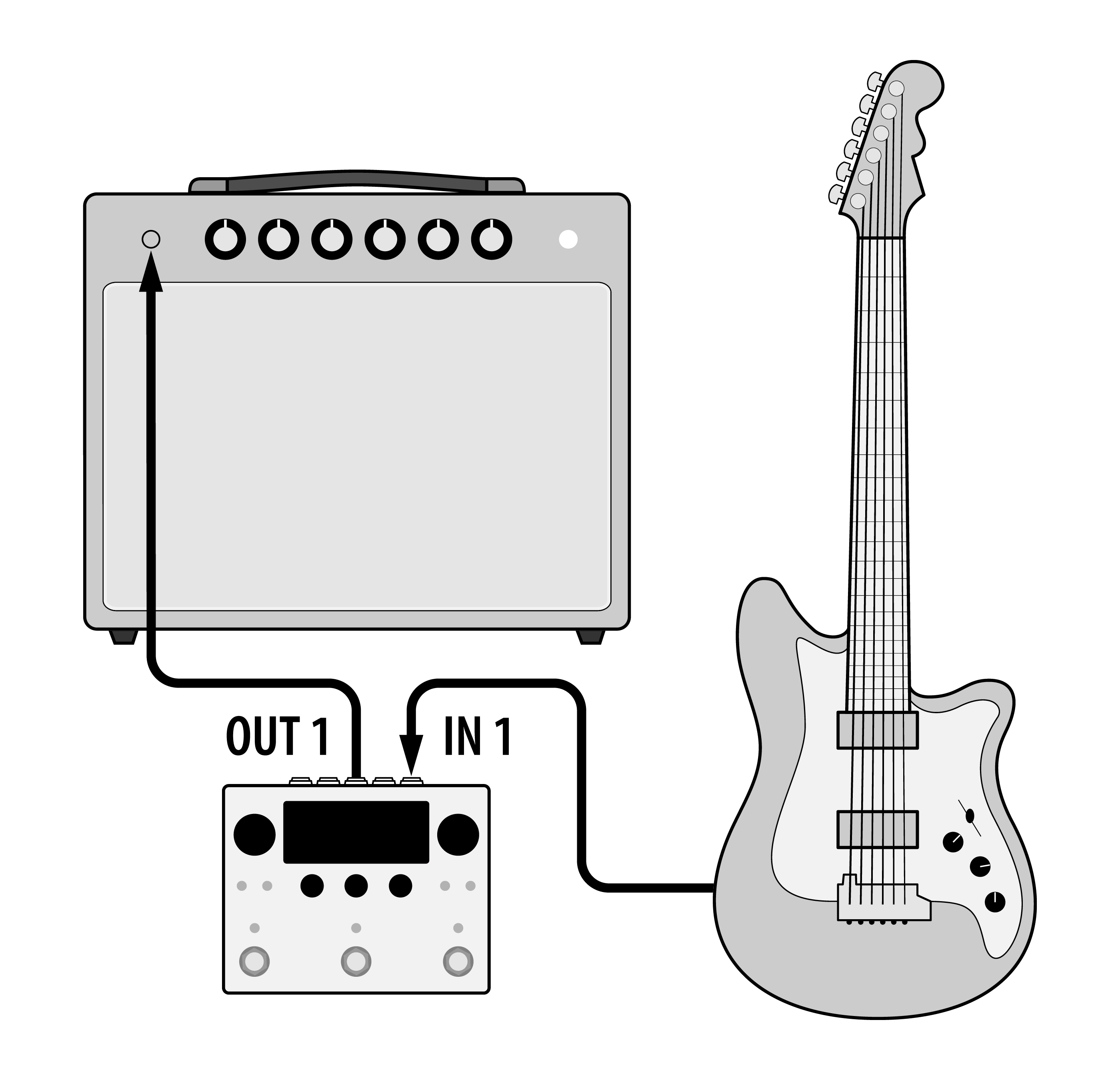

Fig. 3.2 A simple mono guitar configuration

  • Connect your guitar to H90 Input 1.

  • Connect H90 Output 1 to your guitar amp.

  • Use Select Mode to explore the User 1 Playlist.

Auditioning Programs

A selection of Programs have been curated from the Factory Lists and added to the User 1 List. To explore this curated List, press the Select knob to enter Select Mode (Section 5.1). To search through all the Programs on the H90, press the Programs Button to enter Programs Edit Mode (Section 6.1).
