7.2. I/O

In/Out Levels:

Adjust inputs and outputs between instrument level and line level.

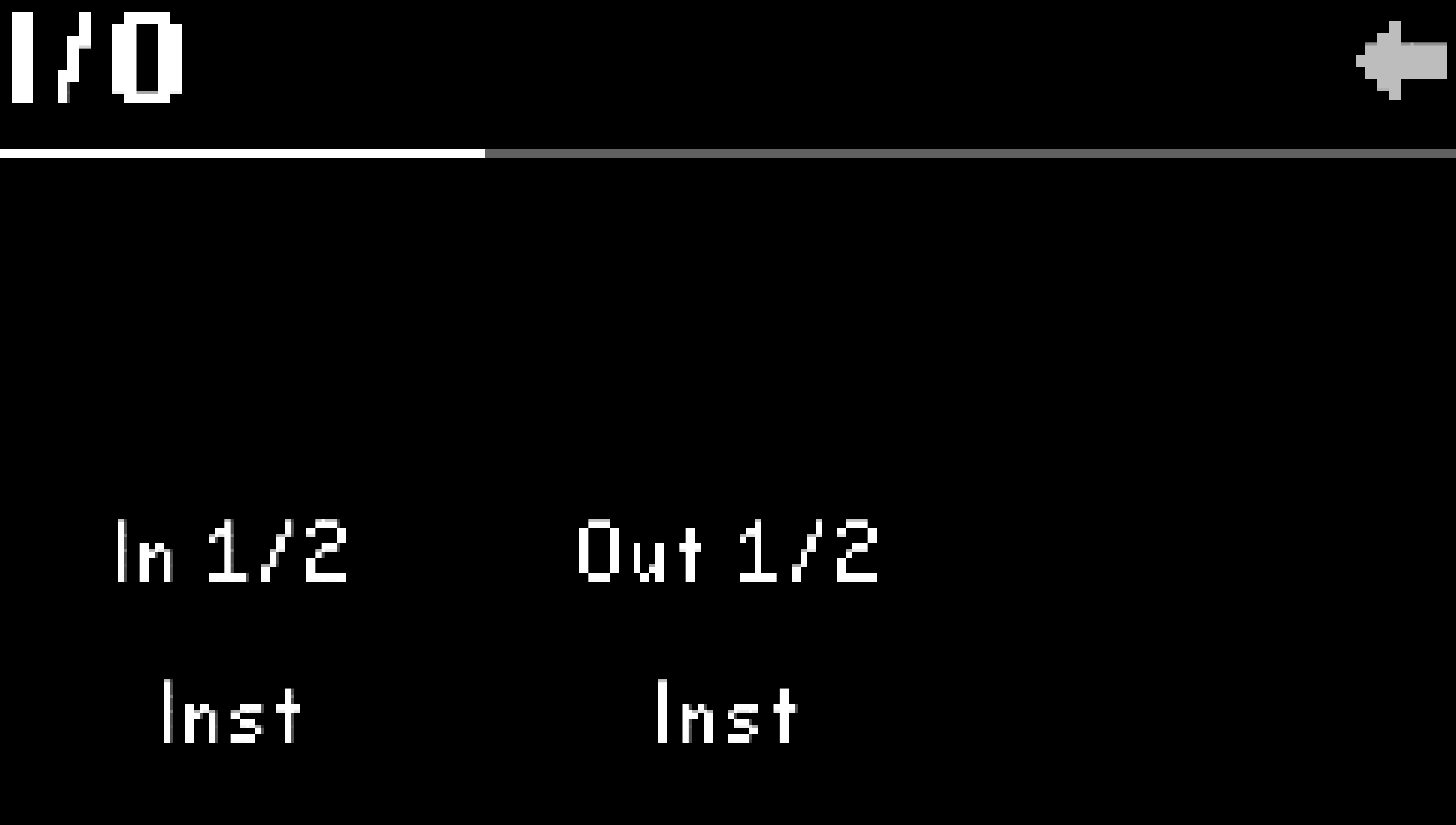

Fig. 7.6 Input/Output level display.

Jacks:

Displays which inputs and outputs are connected.

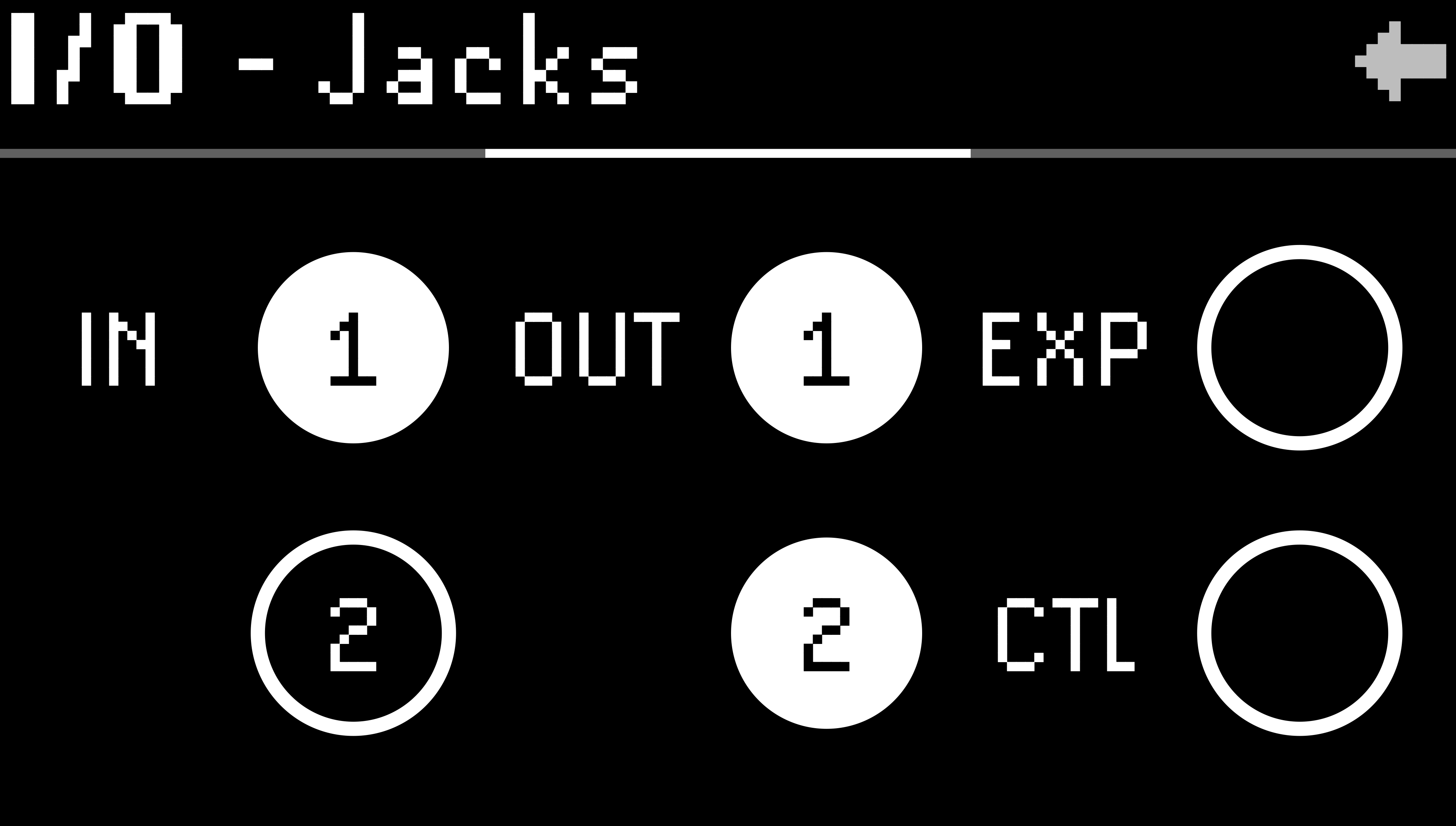

Fig. 7.7 This example shows that input 1 and outputs 1-2 are being used.

Exp/Ctl:

  • EXP is used for expression pedal or CV control.

  • CTL is used for 1, 2, or 3-button Aux Swithes.

  • Once your controllers are connected, turn Quick Knob 3 to calibrate them.

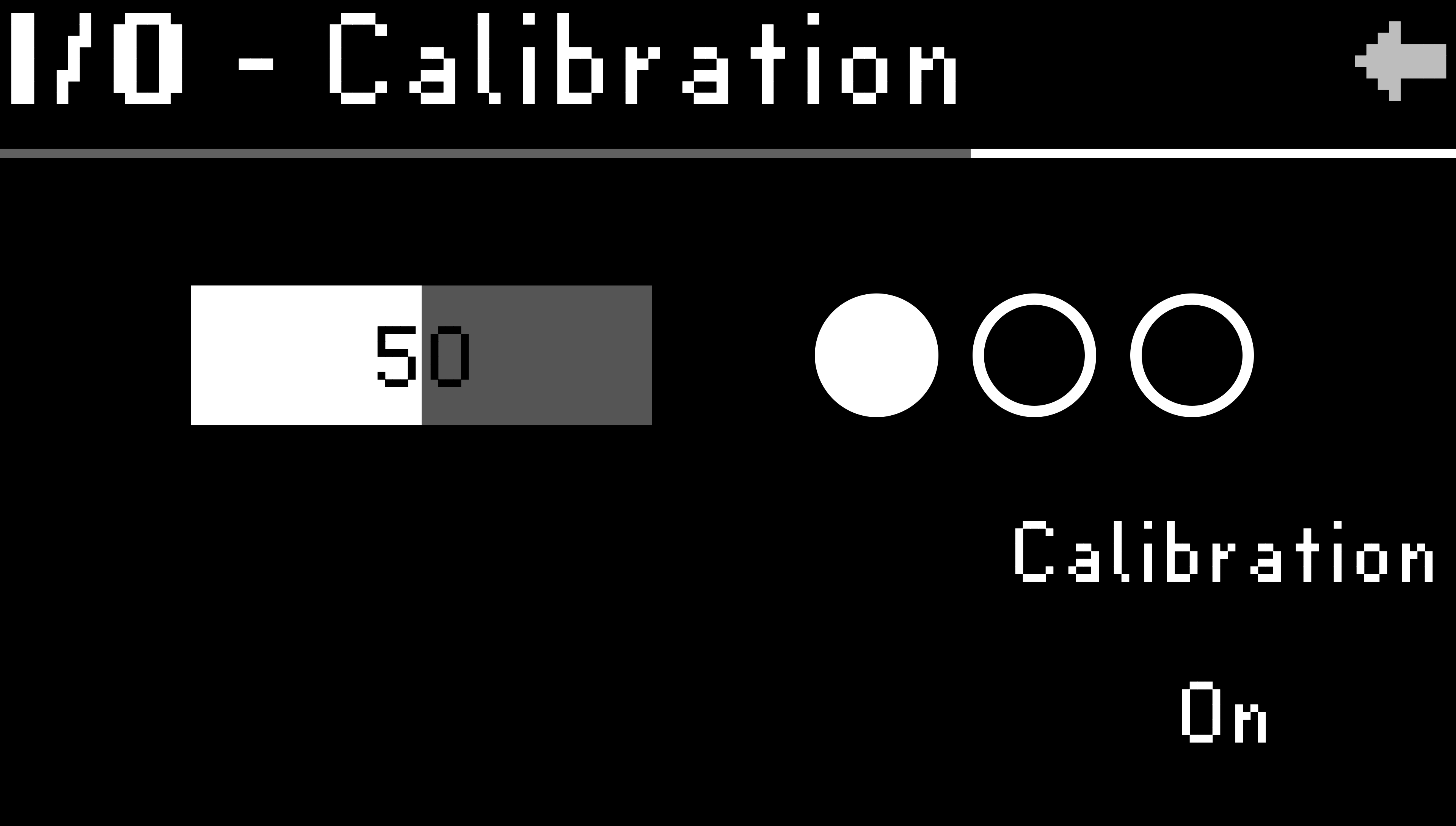

    Fig. 7.8 This example shows the expression pedal and aux switch 1 being calibrated.
